Technical data
Cut range: round up to
280 mm
Square
240 mm
Flat
370 x 140 mm
Cutting range with mitre angle 45°:
Round
225 mm
Square
215 mm
Flat
230 x 140 mm
Cutting range with mitre angle 60°:
Round
140 mm
Square
140 mm
Flat
140 x 130 mm
semi-automatic
Cutting speed:
stepless
from
35 m/min
up to
70 m/min
Band length
3120 mm
Band width
27 mm
Sheet thickness
0.9 mm
Saw motor driving power
1.5 kW
Machine's weight about
465 kg
Overall dimensions machine:
Length
1500 mm
Width
1400 mm
Height
1500 mm
Various accessories:

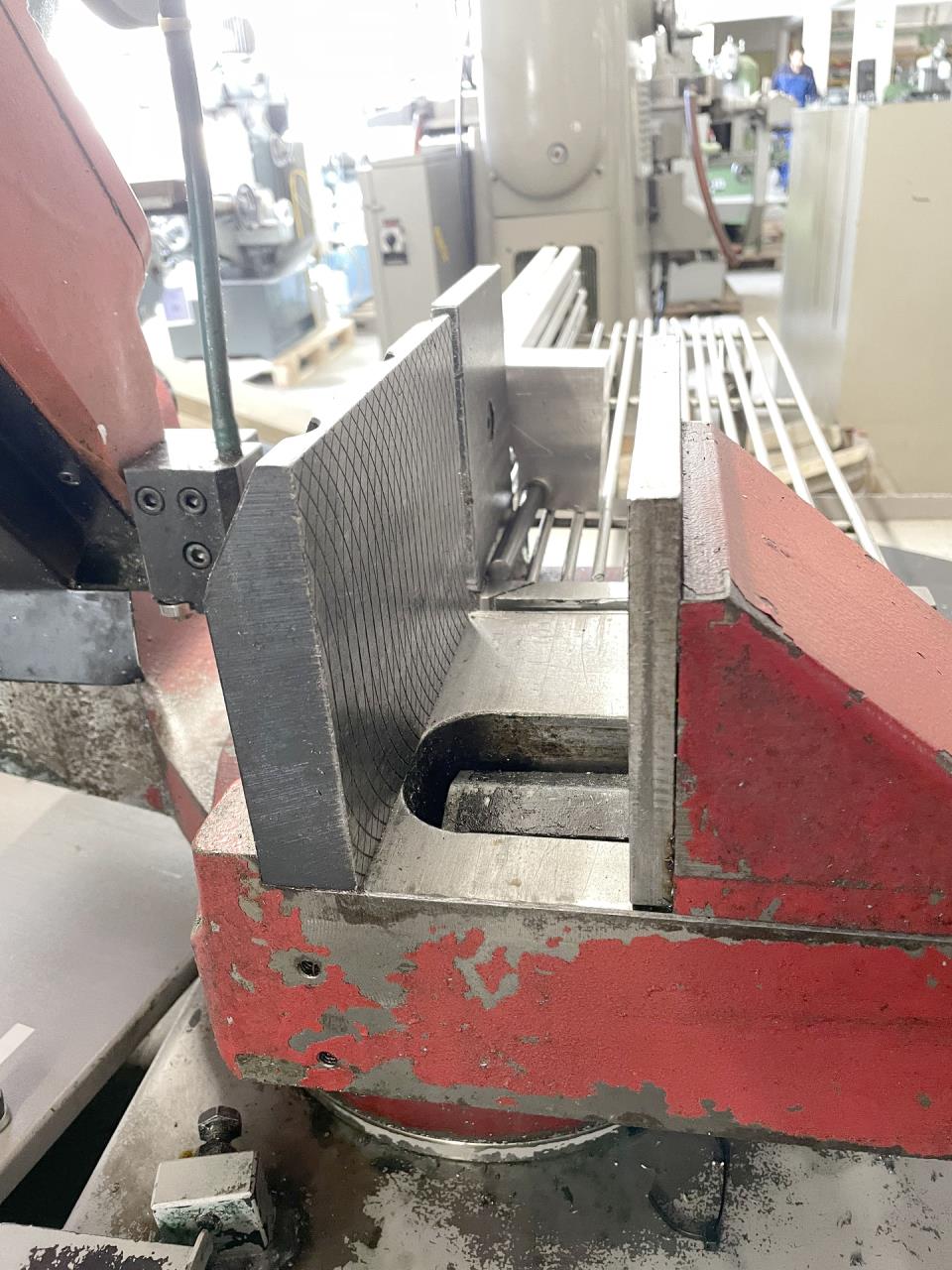

Hydraulic vice
mm

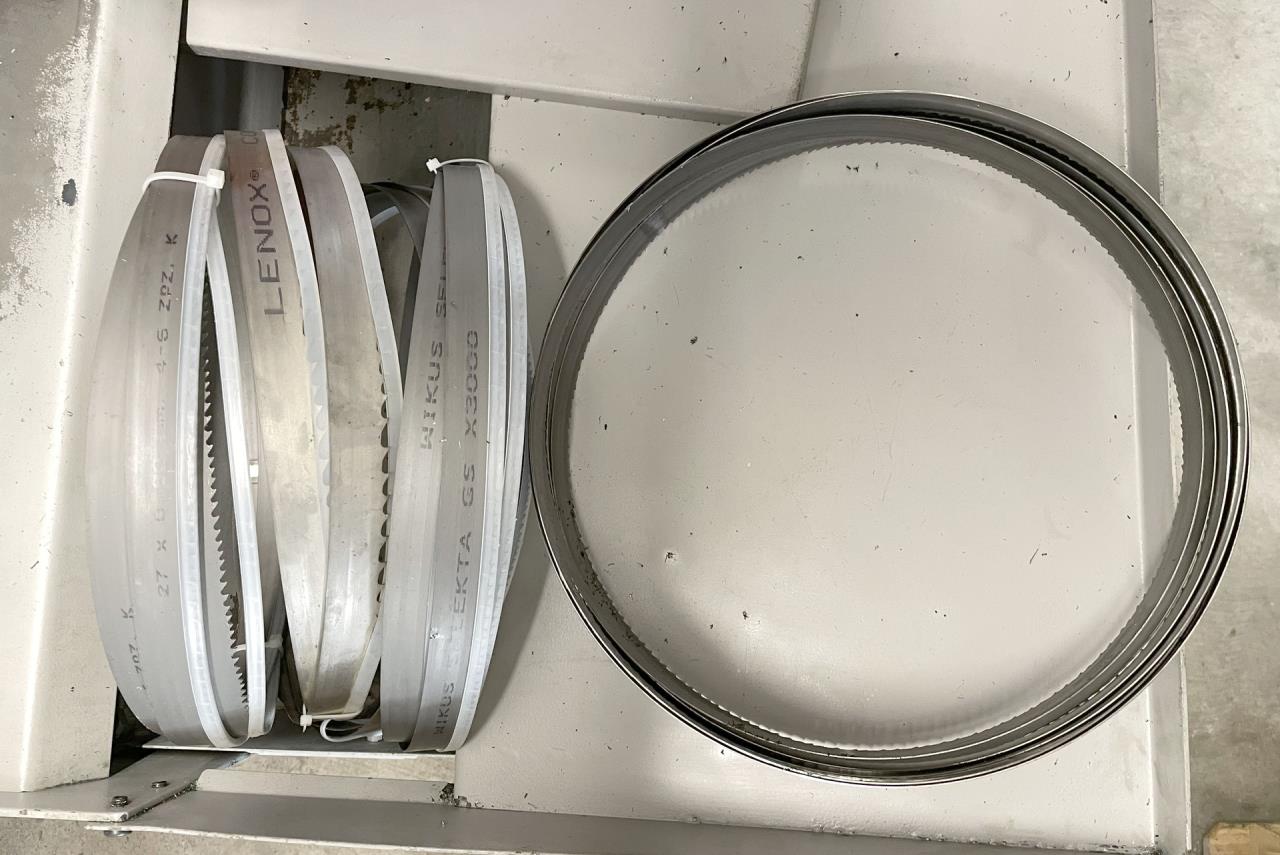

Set of saw bands
Material stops
Technical specifications and pictures without guarantee.
